Tile Spacing & Proleveling System - Cross Leveler w/Tensioning Caps

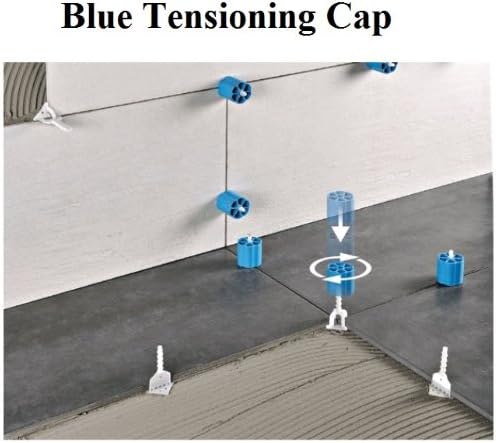

The Proleveling System uses two components, a Leveler and a Cap (Blue Cap), to both space and level wall and floor tile installations, virtually eliminating spacing and lippage problems. Unlike almost all other systems, the Levelers can also be used as tile spacers and no tensioning tool is required! The base of each Leveler has four holes for anchoring between the mortar and tile. The vertical legs of the Leveler rise from the base and act to space the tile. The legs are ‘coded’ for 3 millimeter (1/8”) width grout spacing. The legs then join to the threaded stem of the Leveler, over which the Blue Tensioning Cap is hand tightened, leveling the tile. The Blue Cap can be threaded from either side to allow leveling of tile from 2 mm (3/32") to 40 mm (15/8") thick and is easily adjusted without any tools. Once the tile has set, either kick the Blue Cap (or strike with a mallet) in the direction of the joint, or tighten the Blue Cap to cause the stem and leg portion of the Leveler to break loose from the base. Use the Red Removal Cap to quickly remove the broken portions from the reusable Blue Caps. You will get (100) Cross Leveler Stems, (50) Blue Tensioning Caps, and (2) Red Stem Removal Caps.

• 100 Cross Leveler Stems 50 Blue Tensioning Caps (reusable) 2 Red Stem Removal Caps Space and level wall and floor tile installations No tensioning tool is required!
• 100 Cross Leveler Stems
• 50 Blue Tensioning Caps (reusable)
• 2 Red Stem Removal Caps
• Space and level wall and floor tile installations
• No tensioning tool is required!
